AMC1200SDUB Fully-Differential Isolation Amplifier Low Offset Error 1.5 mV max 9.50 mm × 6.57 mm
1 Features
+250-mV Input Voltage Range Optimized for Shunt Resistors
Very Low Nonlinearity: 0.075% Maximum at 5 V
●Low Offset Error: 1.5 mV Maximum
●Low Noise: 3.1 mV RMS Typical
●Low High-Side Supply Current: 8mAMaximumat5V
Input Bandwidth: 60 kHz Minimum
Fixed Gain: 8 (0.5% accuracy)
High Common Mode Rejection Ratio: 108 dB
●3.3-V Operation on Low- Side
●Certified Galvanic lsolation:
一UL1577 and VDE V 0884-10 Approved
一Ilsolation Voltage: 4250 VpEAK (AMC 1200B)
一Working Voltage: 1200 VPEAK
一Transient Immunity: 10 kV/μs Minimum
●Typical 10-Year Lifespan at Rated Working
Voltage (see Application Report SLL A197)
Fully Specified Over the Extended Industrial
Temperature Range
2 Applications
●Shunt Resistor Based Current Sensing in:
一Motor Control
一Green Energy
一Frequency Inverters
一Uninterruptible Power Supplies
3 Description
The AMC1200 and AMC1200B are precision isolation amplifiers
with an output separated from the input circuitry
by a silicon dioxide (SiO2) barrier that ishighly resistant to magnetic interference.
This barrier has been certified to provide galvanic isolation of up to 4250 VpEAK (AMC1200B)
or 4000 VpEAK (AMC1200) according to UL1577 and VDE V 0884-10.
Used in conjunction with isolated power supplies,
these devices prevent noise currents on a high
common mode voltage line from entering the local ground
and interfering with or damaging sensitive circuitry.
The input of the AMC1200 or AMC1200B is optimized
for direct connection to shunt resistors or other low voltage level signal sources.
The excellent performance of the device supports accurate current control resulting in system-level power saving and,
especially in motor-control applications, lower torque ripple.
The common mode voltage of the output signal is automatically adjusted to either the 3-V or 5-V low-side supply.
The AMC1200 and AMC1200B are fully specified over
the extended industrial temperature range of. - -40°C to 105°C
and are available in a wide-body SOIC-8 package (DWV) and a gullwing-8 package (DUB).
Deli electronics tehcnology Co.,Ltd
http://www.icmemorychip.com/
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN
Product Tags:
|
|

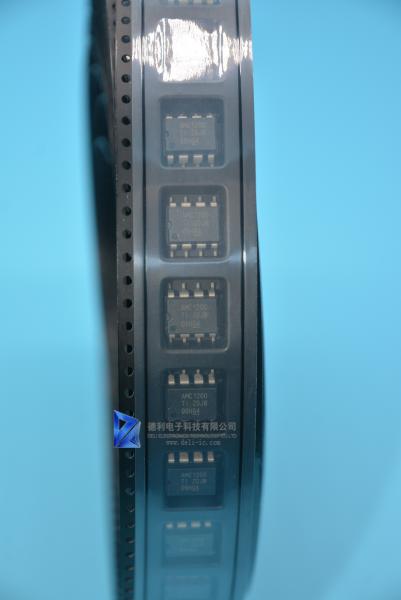

AMC1200SDUB 44mW 5.4mA Isolation Amplifier IC SOP8 Images
|
