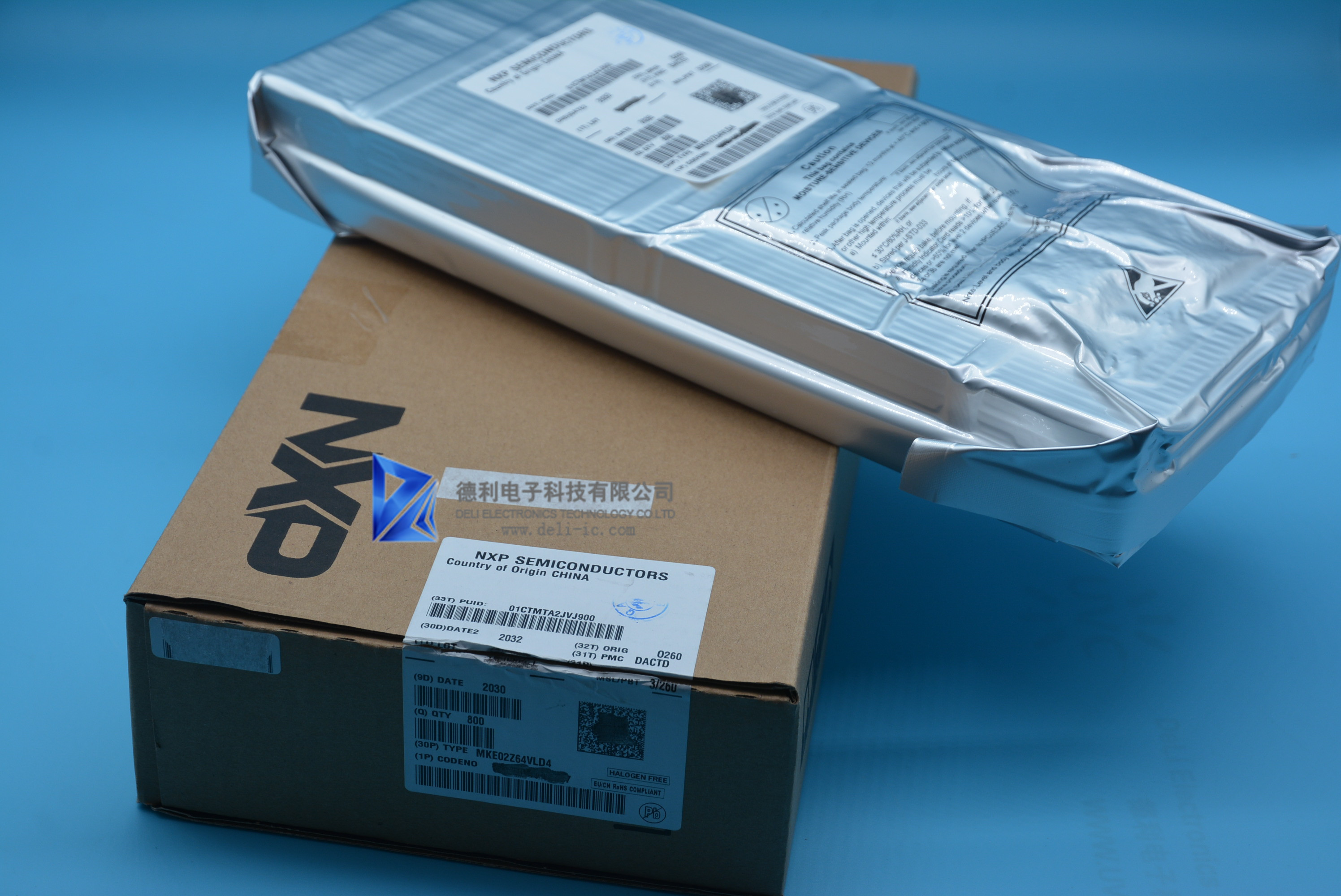

MKE02Z64VLD4 KE02 Sub-Family LQFP44 NXP Holland New Original Hot
Key features
• Operating characteristics
– Voltage range: 2.7 to 5.5 V
– Flash write voltage range: 2.7 to 5.5 V
– Temperature range (ambient): -40 to 105°C
• Performance
– Up to 40 MHz ARM® Cortex-M0+ core and up to 20 MHz bus clock
– Single cycle 32-bit x 32-bit multiplier
– Single cycle I/O access port
• Memories and memory interfaces
– Up to 64 KB flash
– Up to 256 B EEPROM
– Up to 4 KB RAM
• Clocks
– Oscillator (OSC) - supports 32.768 kHz crystal or 4MHz to 20 MHz crystal or ceramic resonator;
choice of low power or high gain oscillators
– Internal clock source (ICS) - internal FLL with internal or external reference,
31.25 kHz pretrimmed internal reference for 32 MHz system clock
(able to be trimmed for up to 40 MHz system clock)
– Internal 1 kHz low-power oscillator (LPO)
• System peripherals
– Power management module (PMC) with three power modes: Run, Wait, Stop
– Low-voltage detection (LVD) with reset or interrupt, selectable trip points
– Watchdog with independent clock source (WDOG)
– Programmable cyclic redundancy check module (CRC)
– Serial wire debug interface (SWD)
– Bit manipulation engine (BME)
• Security and integrity modules
– 64-bit unique identification (ID) number per chip
• Human-machine interface
– Up to 57 general-purpose input/output (GPIO)
– Two up to 8-bit keyboard interrupt modules (KBI)
– External interrupt (IRQ)
• Analog modules
– One up to 16-channel 12-bit SAR ADC, operation in Stop mode, optional hardware trigger (ADC)
– Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)
• Timers
– One 6-channel FlexTimer/PWM (FTM)
– Two 2-channel FlexTimer/PWM (FTM)
– One 2-channel periodic interrupt timer (PIT)
– One real-time clock (RTC)
• Communication interfaces
– Two SPI modules (SPI)
– Up to three UART modules (UART)
– One I2C module (I2C)
• Package options
– 64-pin QFP/LQFP
– 44-pin LQFP
– 32-pin LQFP
– 32-pin QFN
