10UF 25V 0805 General Monolithic Ceramic Capacitor GRM21BC81E106KE11L

Name: 10UF 25V 0805 General Monolithic Ceramic Capacitor GRM21BC81E106KE11L
Brand: Murata
Price: 1 USD

China 10UF 25V 0805 General Monolithic Ceramic Capacitor GRM21BC81E106KE11L wholesale

Brand Name : Murata

Model Number : GRM21BC81E106KE11L

Certification : CE/ RoHS

Place of Origin : JAPAN

MOQ : 10pcs

Price : To be negotiated

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 10,000PCS

Delivery Time : in stock 2-3days

Packaging Details : Reel

PN : GRM21BC81E106KE11L

Brand : Murata

Original : JAPAN

Size : 0805

Voltage : 25V

Capacitance : 10UF

Type : Chip Monolithic Ceramic Capacitor for General

Contact Now

GRM21BC81E106KE11L Chip Monolithic Ceramic Capacitor for General 10UF 25V X6S 0805

Scope

This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.

Rated Voltage , Shown in Rated value.

The rated voltage is defined as the maximum voltage

which may be applied continuously to the capacitor.

When AC voltage is superimposed on DC voltage, VP-P or VO-P ,

whichever is larger, should be maintained within the rated voltage range.

Voltage proof

Measurement Point :Between the terminations

Test Voltage : 250% of the rated voltage

Applied Time : 1 to 5 s

Charge/discharge current : 50mA max.

Insulation Resistance(I.R.) ,

More than 50Ω ∙ F

Measurement Point : Between the terminations

Measurement Voltage : DC Rated Voltage

Charging Time : 1 min

Charge/discharge current : 50mA max.

Measurement Temperature : Room Temperature

These Part Numbers are designed for use in the circuits w here

continuous applied voltage to the capacitor is derated than rated

voltage, and guarantee Durability Test w ith 100% × rated voltage

as testing voltage at the maximum operating temperature.

The voltage and temperature derating conditions on the left are

recommended for use to ensure the same reliability level as

normal specification.

10UF 25V 0805 General Monolithic Ceramic Capacitor GRM21BC81E106KE11L

Deli electronics tehcnology Co.,Ltd
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN

Product Tags:

0805 General Monolithic Ceramic Capacitor

10UF General Monolithic Ceramic Capacitor

GRM21BC81E106KE11L Ceramic Capacitor Chip

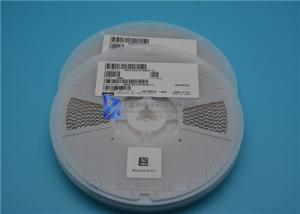

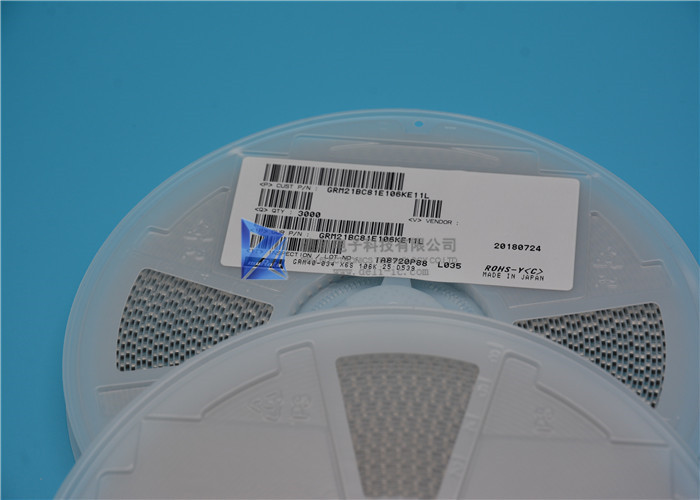

10UF 25V 0805 General Monolithic Ceramic Capacitor GRM21BC81E106KE11L Images
