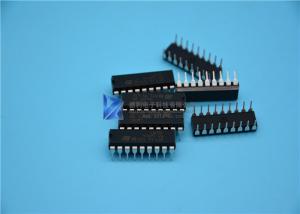

L603C ST Original Darlington Arrays IC DIP - 18 DC90V

Brand Name : ST

Model Number : L603C

Certification : CE/ RoHS

Place of Origin : USA

MOQ : 10pcs

Price : To be negotiated

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 10,000PCS

Delivery Time : in stock 2-3days

Packaging Details : Tube

PN : L603C

Brands : ST

Original : USA

Package : DIP-18

Type : Darlington Arrays IC

Output Voltage : 90 V (vce (sus)) = 70 V)

Contact Now

L603C ST Original Darlington Arrays IC DIP-18 Original high permance

■ Eight Darlingtons Per Package
■ Output Current 400 Ma Per Driver (500ma Peak)
■ Output Voltage 90 V (vce (sus)) = 70 V)
■ Integral Suppression Diodes For Inductive Loads
■ Outputs Can Be Paralleled For Higher Current
■ Ttl / Cmos Inputs
■ Inputs Pinned Opposite Outputs To Simplify Layout

DESCRIPTION

The L603 and L604 are high voltage, high current

darlington arrays each containing eight open collector darlington pairs with common emitters. Each

channel is rated at 400mA and can with stand peak currents of 500 mA.

Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.

The four versions interface to all common logic families:

L603 = 5V TTL

L604 = 6 - 15V CMOS

These versatile devices are useful for driving a wide range of loads, including solenoids, relays DC motors,

LED displays, filament lamps, thermal printheads and high power buffers.

L603C ST Original Darlington Arrays IC DIP - 18 DC90V

Deli electronics tehcnology Co.,Ltd
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN

Product Tags:

DC90V Original Darlington Arrays IC

L603C Original Darlington Arrays IC

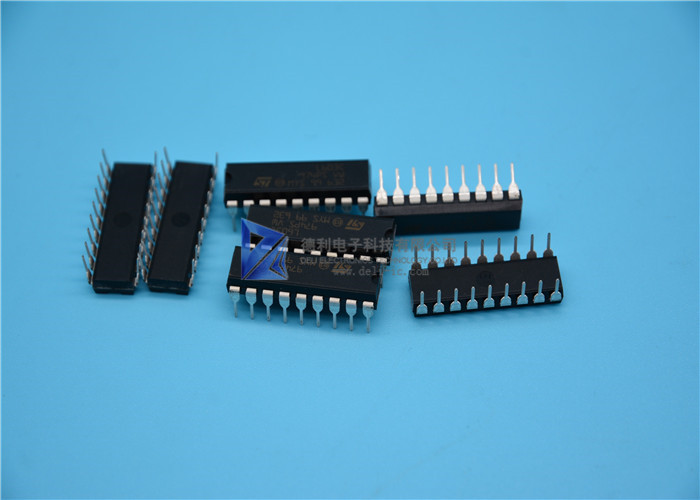

L603C ST Original Darlington Arrays IC DIP - 18 DC90V Images
