2P-24P Poles Printed Circuit Board Connector , Screw Terminal Block DL332J-XX-3.5/3.81

Product Categories

DELI ELECTRONICS TECHNOLOGY CO.,LTD

Contact Now

Name: 2P24P Poles Printed Circuit Board Connector Screw Terminal Block DL332JXX35381
Brand: DELI
Price: 1 USD

Brand Name : DELI

Model Number : DL332J-XX-3.5/3.81

Place of Origin : CN

MOQ : 100

Payment Terms : T/T, Western Union

Supply Ability : 10000

Delivery Time : 2DAYS

Packaging Details : BAG

Pitch : 3.5/3.81MM

Poles : 2P-24P

Pin header : Brass、Tin plated

Housing : PBT. UL94V-0

Rated voltage : 300V/250V

Rated current : 8A/10A

Withstanding voltage : AC2000V/1Min

MAX soldering : +250℃ for 5 sec

Contact Now

MATERIAL

Pitch:3.5/3.81MM

Poles: 2P-24P

Pin header: Brass, Tin plated

Housing:PBT. UL94V-0

ELECTRICAL

Rated voltage:300V/250V

Rated current:8A/10A

Withstanding voltage:AC2000V/1Min

MECHANICAL

Temperature range:-30℃-- +120℃

MAX soldering:+250℃ for 5 sec

DeLi Electronics Technology Co., Ltd

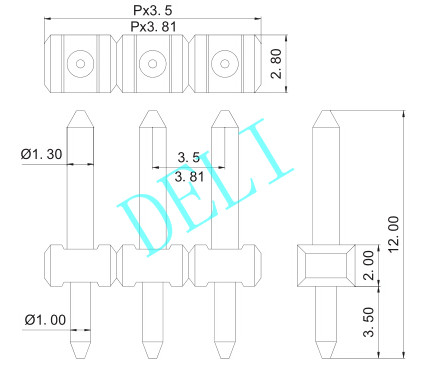

PART# : DL332J-XX-3.5/3.81
