Spring Terminal Block Printed Circuit Board Connector DL143-XX-5.0 20-16AWG Wire Range

Product Categories

DELI ELECTRONICS TECHNOLOGY CO.,LTD

Contact Now

Name: Spring Terminal Block Printed Circuit Board Connector DL143XX50 2016AWG Wire Range
Brand: DELI
Price: 1 USD

Brand Name : DELI

Model Number : DL143-XX-5.0

Place of Origin : CN

MOQ : 100

Payment Terms : T/T, Western Union

Supply Ability : 10000

Delivery Time : 2DAYS

Packaging Details : BAG

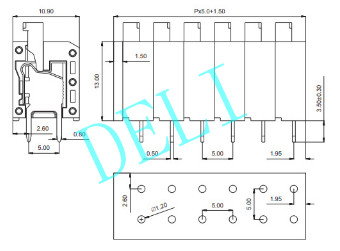

Pitch : 5.0MM

Poles : 1P-xxP

Pin header : Brass 、Tin plated

Housing : PA66. UL94V-0

Rated voltage : 300V/320V

Rated current : 10A/10A

Withstanding voltage : AC2000V/1Min

Wire range : 20-16AWG

Contact Now

MATERIAL

Pitch:5.0MM

Poles: 1P-xxP

Pin header:Brass , Tin plated

Wire guard: Stainless Steel

Housing:PA66. UL94V-0

ELECTRICAL

Rated voltage:300V/320V

Rated current:10A/10A

Withstanding voltage:AC2000V/1Min

Wire range:20-16AWG

MECHANICAL

Temperature range:-40℃-- +105℃

MAX soldering:+250℃ for 5 sec

Strip length:8-9mm Spring Terminal Block Printed Circuit Board Connector DL143-XX-5.0 20-16AWG Wire Range

DeLi Electronics Technology Co., Ltd

PART# :DL143-XX-5.0
