MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount

Name: MMSZ4688 Zener General Purpose Rectifier Diode 47V 500mW 5 Surface Mount
Brand: ECHIP
Price: 1 USD

China MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount wholesale

Brand Name : ECHIP

Model Number : MMSZ4688

Place of Origin : CHINA

MOQ : 10 PCS

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 100000PCS

Delivery Time : STOCK

Packaging Details : REEL

Categories : Diodes - Zener - Single

Voltage - Zener (Nom) (Vz) : 4.7V

Tolerance : ±5%

Power - Max : 500mW

Current - Reverse Leakage @ Vr : 10µA @ 3V

Voltage - Forward (Vf) (Max) @ If : 950mV @ 10mA

Operating Temperature : 150°C

Package : SOD-123

Contact Now

MMSZ4688 General Purpose Rectifier Diode Zener Diode 4.7V 500mW ±5% Surface Mount

Features

Zener Voltage1.8V-39V

x Very Sharp Reverse Characteristic

x VZ – tolerance ± 5%

x High Reliability
• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

Mechanical Data

• Halogen free available upon request by adding suffix "-HF"
x Polarity: Cathode indicated by polarity band
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)

Product Attributes	Select All
Categories	Discrete Semiconductor Products
	Diodes - Zener - Single
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Voltage - Zener (Nom) (Vz)	4.7V
Tolerance	±5%
Power - Max	500mW
Current - Reverse Leakage @ Vr	10µA @ 3V
Voltage - Forward (Vf) (Max) @ If	950mV @ 10mA
Operating Temperature	150°C
Mounting Type	Surface Mount
Package / Case	SOD-123

MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount

Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales3@deli-ic.com
Skype:hkdeli881
TEL:86-0755-82539981

Product Tags:

high current schottky diode

low power zener diode

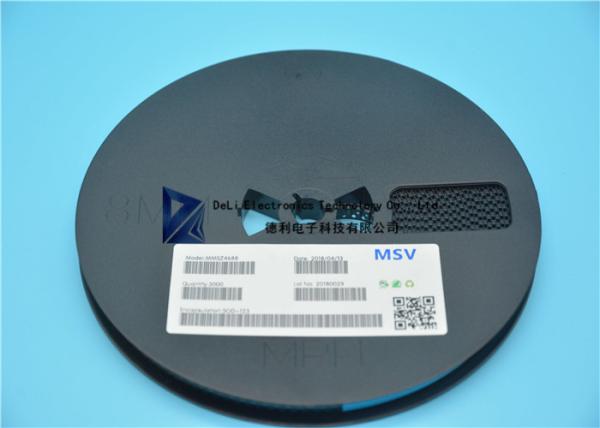

MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount Images
